Tug Compact Linen Mover

Battery-powered trolley mover with 500 kg capacity

Tug Compact Linen Mover

Features at a glance

500 kg towing capacity

Compact and easy to manoeuvre in tight corridors

Designed for linen trolleys that are 500–700 mm wide

Ideal for towing linen trolleys fitted with two swivel and two fixed castors

Electrodrive's Tug Compact Linen Mover is a battery powered tug suitable for towing linen trolleys fitted with two swivel and two fixed castors.

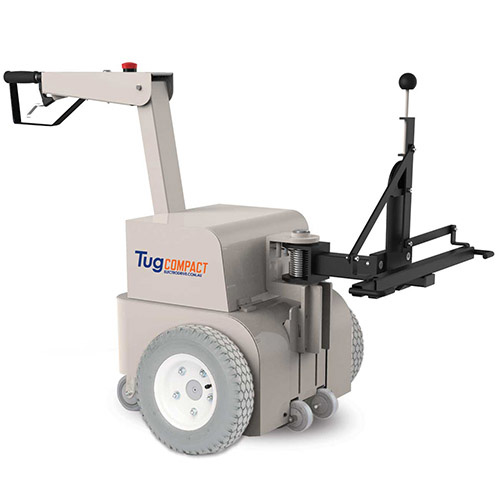

Tug Compact Linen Mover with its 'front-of-load' control
Tug Compact Linen Mover with its "front-of-load" control

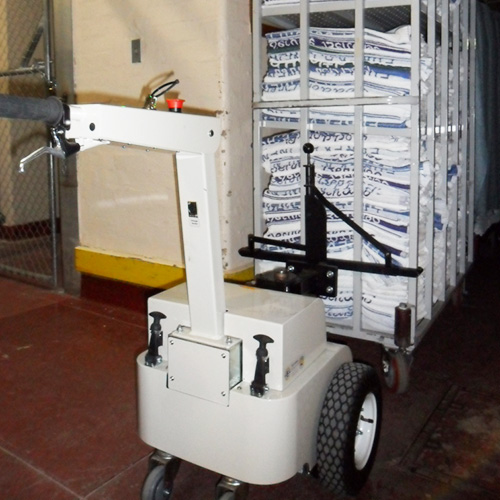

Tug Compact Linen Mover hitched to a linen trolley
Tug Compact Linen Mover hitched to a linen trolley

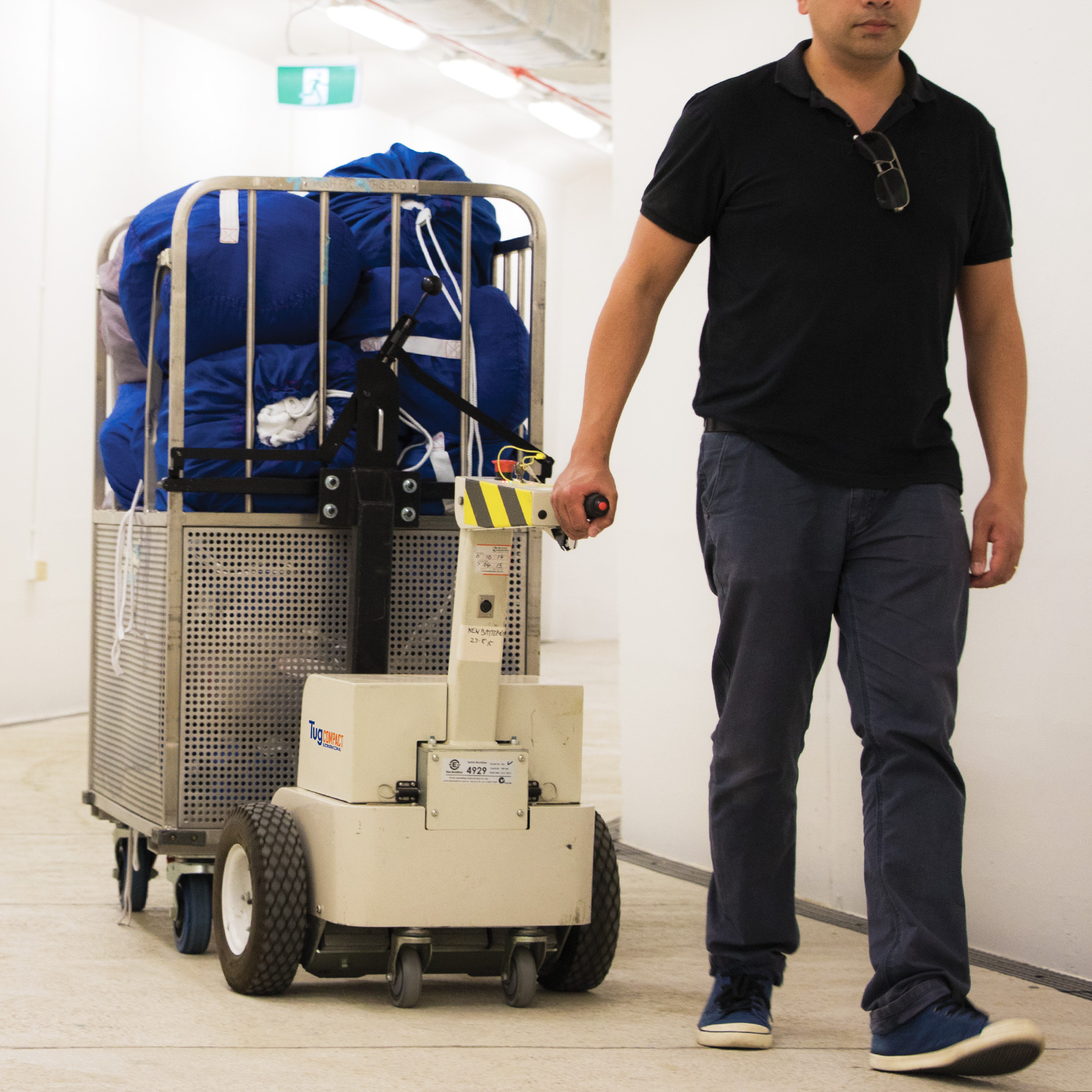

Tug Compact Linen Mover towing a full linen trolley
Tug Compact Linen Mover towing a full linen trolley

Move laundry trolleys with the powered tug linen mover

The Tug Compact Linen Mover is a battery powered tug (Tug Compact) with a custom hitch, specially designed for attaching to linen trolleys that are 500–700 mm wide.

As with all Electrodrive tugs, this configuration will allow a user to tow up to 500 kg safely. And because it is nimble, it will allow you to effortless manoeuvre heavy linen trolleys through tight corridors, avoiding the risk of collisions or manual handling injuries associated with linen handling.

With the forward facing tow action of a tug, the user is always protected against collisions and costly push/pull injuries.


Typical applications

  • Suitable for hospitals, commercial linen services, laundries, aged care facilities, casinos, hospitality.

  • Ideal for towing linen trolleys fitted with two swivel and two fixed castors.

Features and specifications

Order code

TUGLINENMOVER

Tow capacity

500 kg

Max. speed

Up to 5 km per hour.

Speed mode

Three speed control with forward, reverse and emergency stop.

Usability

  • Battery operated and rechargeable.

  • Ideal for towing linen trolleys fitted with two swivel and two fixed castors.

  • Ergonomic design.

  • Compact and easy to manoeuver in tight corridors.

  • Simple to use, and easily attaches to trolleys.

  • Quiet, smooth operation with zero emissions.

  • Zero emissions.

  • Non-marking tyres.

Hitching

  • Supplied with a clamping hitch.

  • Wide variety of hitches are available for easy attachment to trolleys.
    Check the hitching and accessories page for more information.

Country of origin

Designed and manufactured in Australia.

Safety features

  • Intuitive control with standard automatic safety brake, forward and reverse drive.

  • Emergency stop button.

  • Emergency back-off button.

Warranty

  • Comprehensive 12-month warranty.

  • Six month warranty on battery and charger.

Service

Training and servicing programs are available.

Download our Preventative Maintenance Plans for more information.

Battery

Two 12V-33Ah rechargeable batteries with 24V smart charger.

Dimensions (L/W/H)

1351/609/891 mm
