Gzunda linen mover—for linen trolleys or laundry carts

Battery-powered compact unit with 500 kg capacity

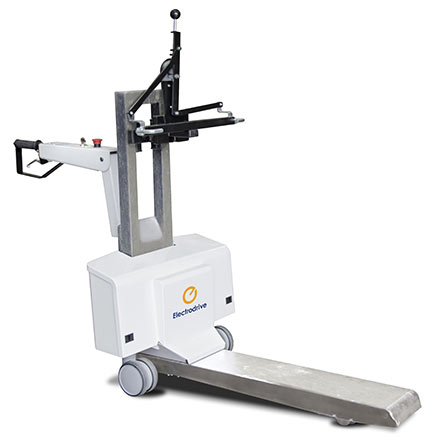

Gzunda Linen Mover - powered mover
Features at a glance

500 kg towing capacity

Compact and easy to manoeuvre in tight spaces.

Ergonomic design.

Quiet to operate.

The Australian-made compact Gzunda Linen Mover enables a single user to tow up to 500 kg linen trolleys with ease.

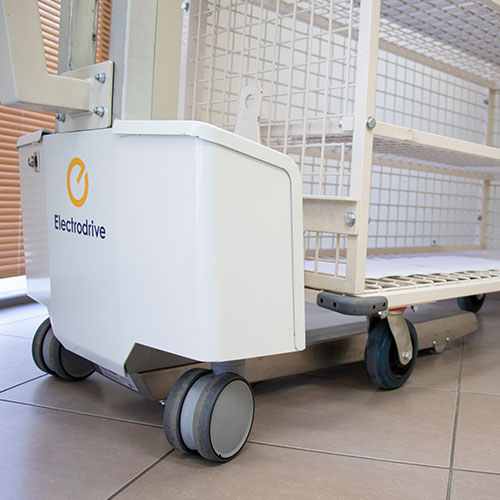

Electrodrive's Gzunda linen mover
The Gzunda linen mover
Electrodrive's Gzunda linen mover
The Gzunda linen mover
Electrodrive's Gzunda linen mover
The Gzunda Linen Mover

Ergonomically designed, compact electric linen trolley mover

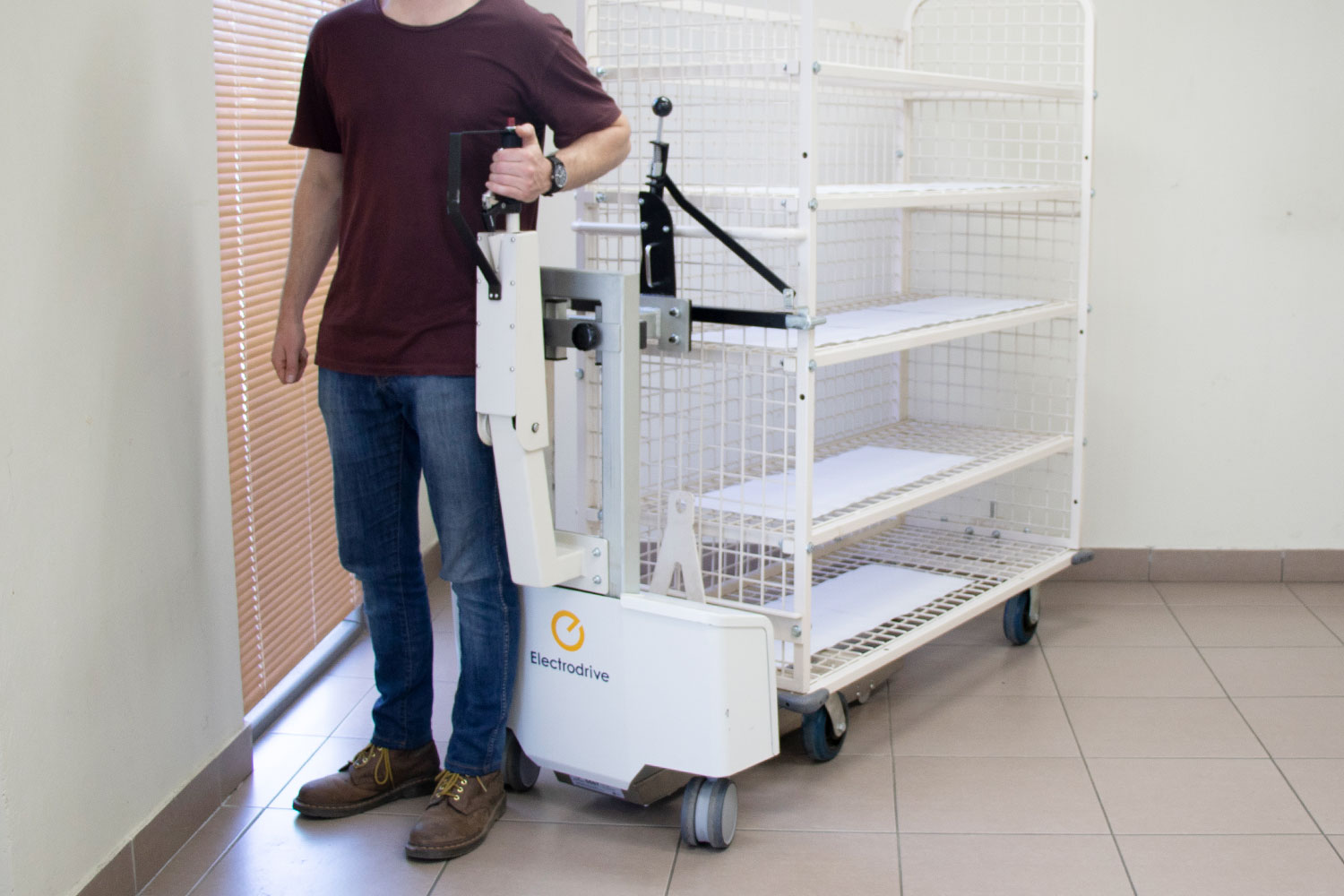

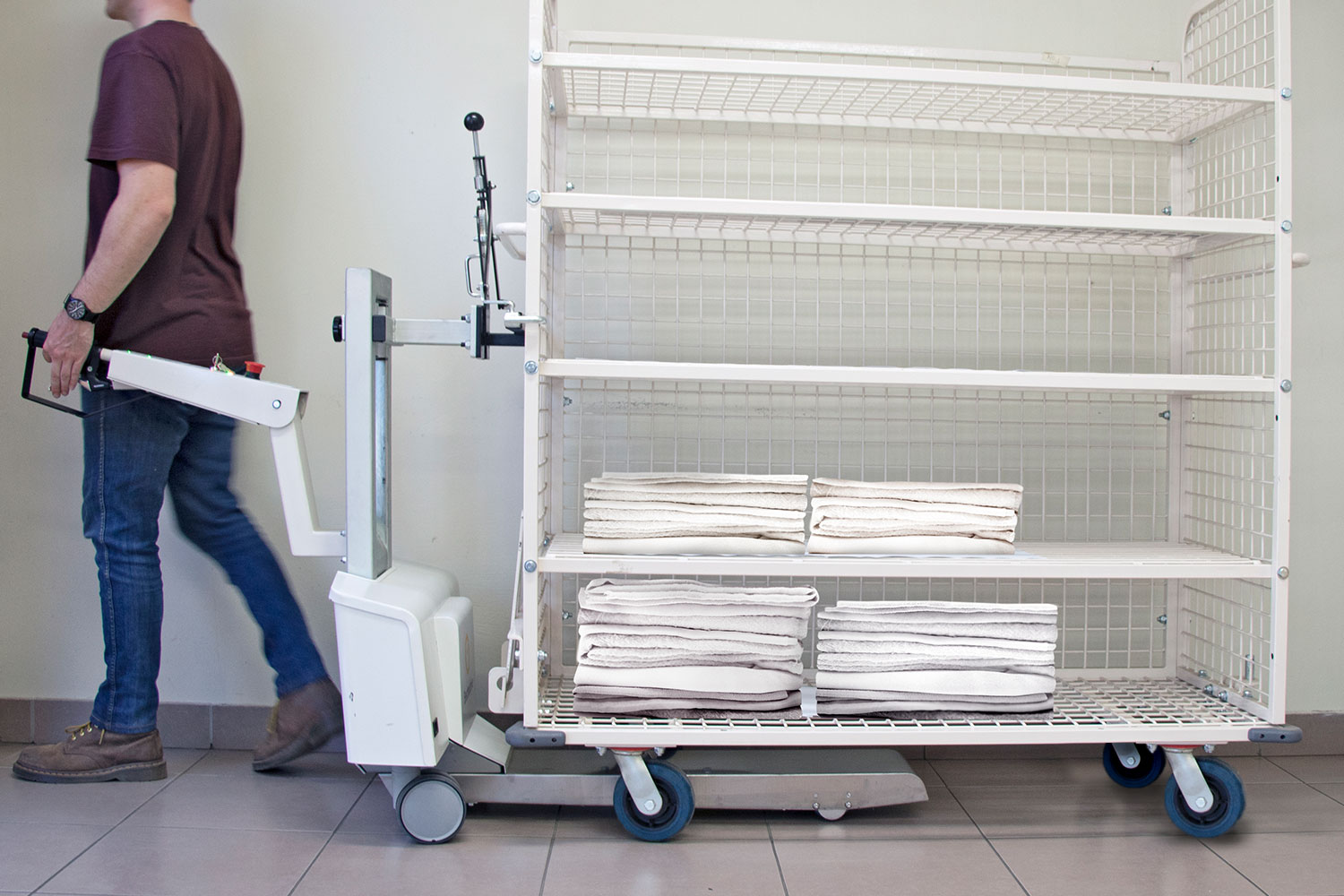

The Gzunda Linen Mover is an ergonomically designed unit ideal for towing linen trolleys or laundry carts around hospitals, aged care facilities or hotels.

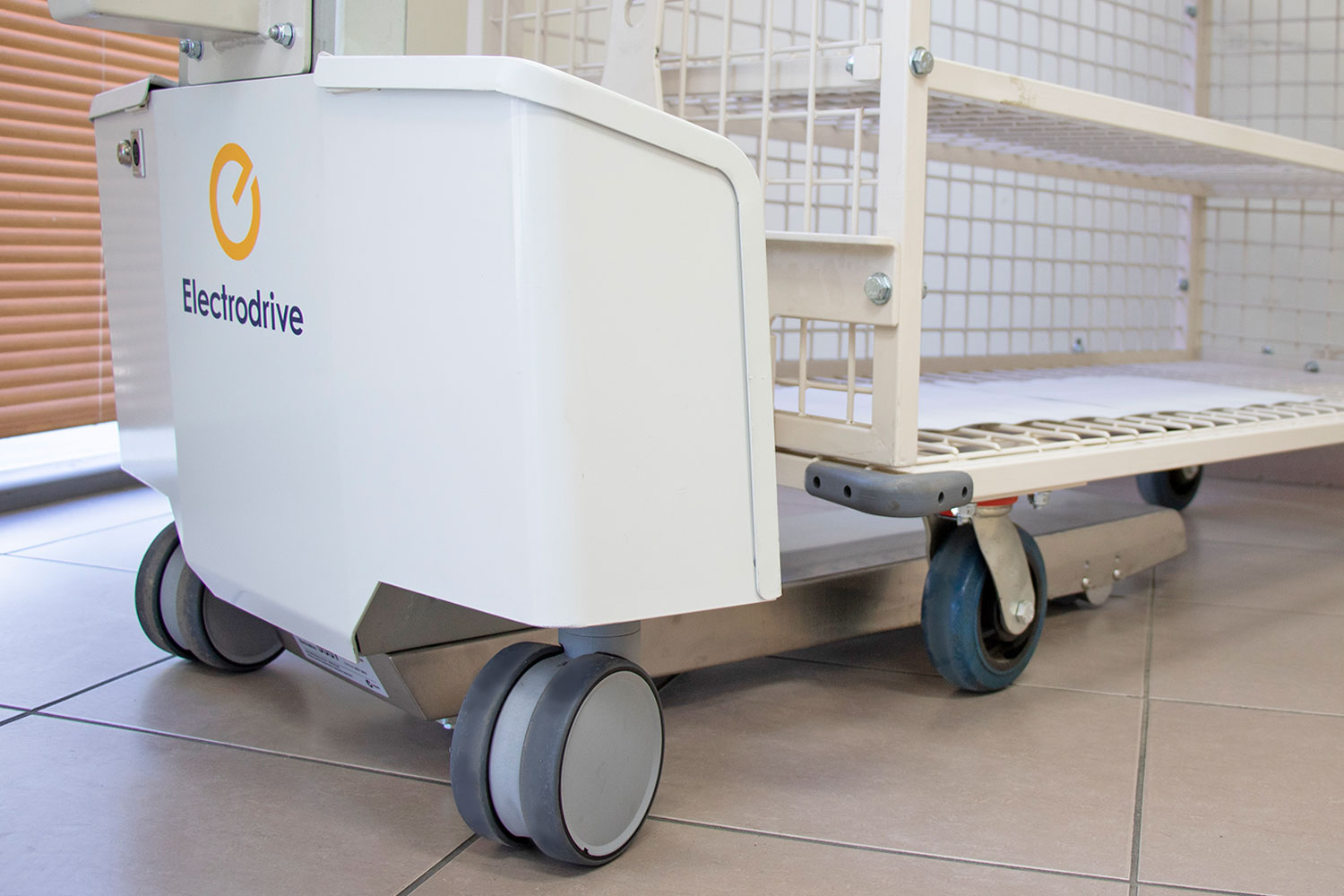

The central tine acts as a powerful fifth wheel, fitting neatly under your linen trolley or laundry cart for effortless manoeuvrability.

No modifications are required to your existing fleet of trolleys or carts, as the Gzunda Linen Mover is suitable for trolleys with four swivel castors.

The Gzunda Linen Mover’s compact design and folding tiller handle makes it suitable for moving your linen or laundry in-and-out of lifts and in tight spaces, while keeping the user in-front-of-the-load—and avoiding the risk of collisions.

The versatile hitch slides up and down providing a stable centre-of-gravity—crucial for towing tall heavy trolleys or carts.

As with all Electrodrive equipment, the Gzunda Linen Mover comes with a comprehensive 12-month warranty, including parts and labour.

Proudly designed and manufactured in Australia.


Typical applications

Suitable for towing linen and laundry trolleys and carts around hospitals, aged care facilities or hotels.

Features and specifications

Order code

GZLINENMOVER (supplied with clamp hitch)

GZLINENMOVER(NH) (supplied without a hitch)

Load capacity

Move up to 500 kg.

Max. speed

Up to 5 km per hour.

Speed mode

Three speed control with forward, reverse and emergency stop.

Usability

  • Compact design. With the tiller handle folded, the unit adds only an extra 300 mm to the length of your trolley or cart.

  • Central drive tine fits neatly under your trolley or cart for increased manoeuvrability.

  • Easy to steer in tight corridors.

  • Battery operated and rechargeable.

  • Tiller control handle for ergonomic ‘front of load’ operation.

  • Simple to use.

  • Quiet, smooth operation.

  • Zero emissions.

Hitching

  • Supplied with a clamping hitch, range 520-720 mm.

  • Hitching dimensions height from ground: 630 mm (min.) to 950 mm (max.)

  • Wide variety of hitches available for easy attachment to trolleys or carts.
    Check the hitching and accessories page for more information.

Country of origin

Designed and manufactured in Australia.

Safety features

  • Emergency stop button.

  • Emergency back-off button.

Warranty

  • Comprehensive 12-month warranty.

  • Six month warranty on battery and charger.

Service

Training and servicing programs are available.

Download our Preventative Maintenance Plans for more information.

Battery

Two 12V-33Ah rechargeable batteries with 24V smart charger.

Dimensions (L/W/H)

1759/676/1152 mm

1379/676/1290 mm (tiller handle folded up)

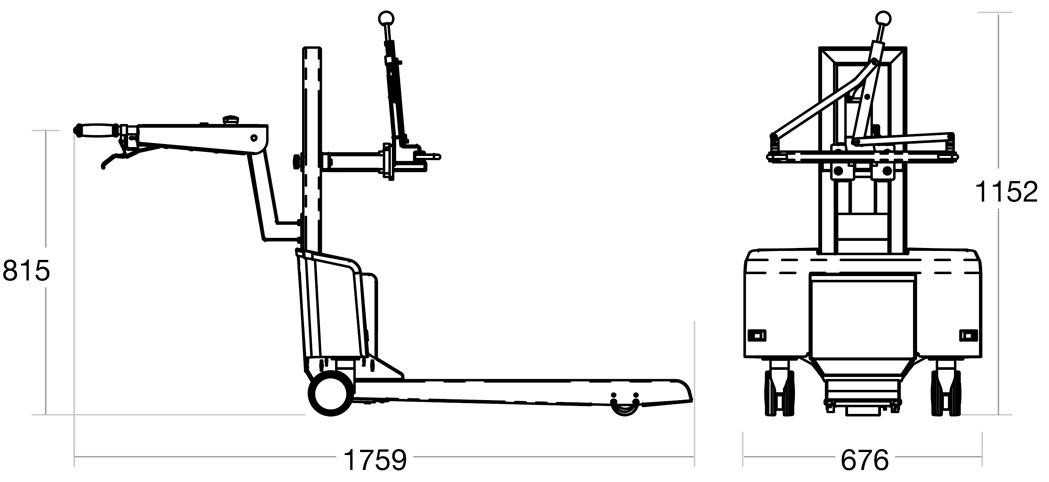

Gzunda linen mover diagram

Electrodrive's Linen Mover range

Browse the powered linen mover range.
