Electrodrive Tug sale

Tug Tough—10T and 20T

Industrial powered tugs with a 10 or 20 tonne tow capacity

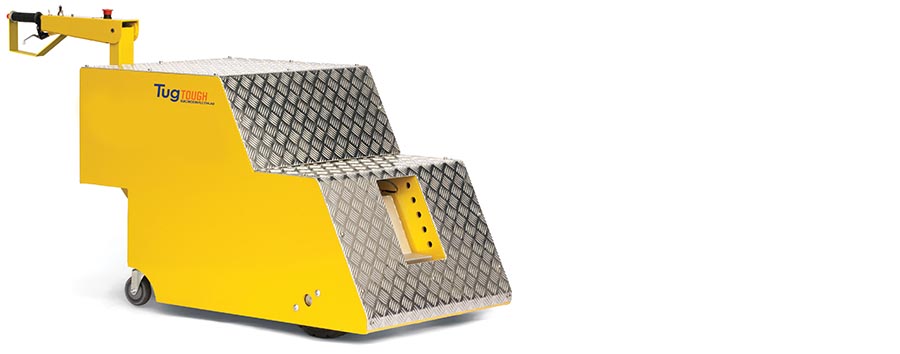

Tug Tough 20 tonne



Heavy duty electric tug for towing up to 20 tonnes

Our Tug Tough pedestrian operated electric tugs are the perfect heavy duty workhorse for loads up to 20 tonnes.

The Tug Tough utilises a powerful 48 V drive system to allow a single operator to hitch to and move big loads. Available in 10 tonne (Tough 10T) and 20 tonne (Tough 20T) models, the Tug Tough can be fitted with an optional hydraulic lifting hitch available for either capacity.

Just like the other Tugs in the family, the Tug Tough allows the operator to walk in front of the heavy load, allowing maximum forward vision and eliminating the possibility of accidents when negotiating turns. The Tug Tough converts a difficult and often dangerous operation into an easy to move motorised assembly.

The Tug Tough incorporates all of the features you would expect on an Electrodrive product and is designed to improve safety and efficiency, whilst reducing the risk of accidents that can occur when manually moving extremely heavy loads.


Typical applications

  • Towing heavy vehicle for maintenance.

  • Vehicle tugger: Pulling buses or trucks through a production line.

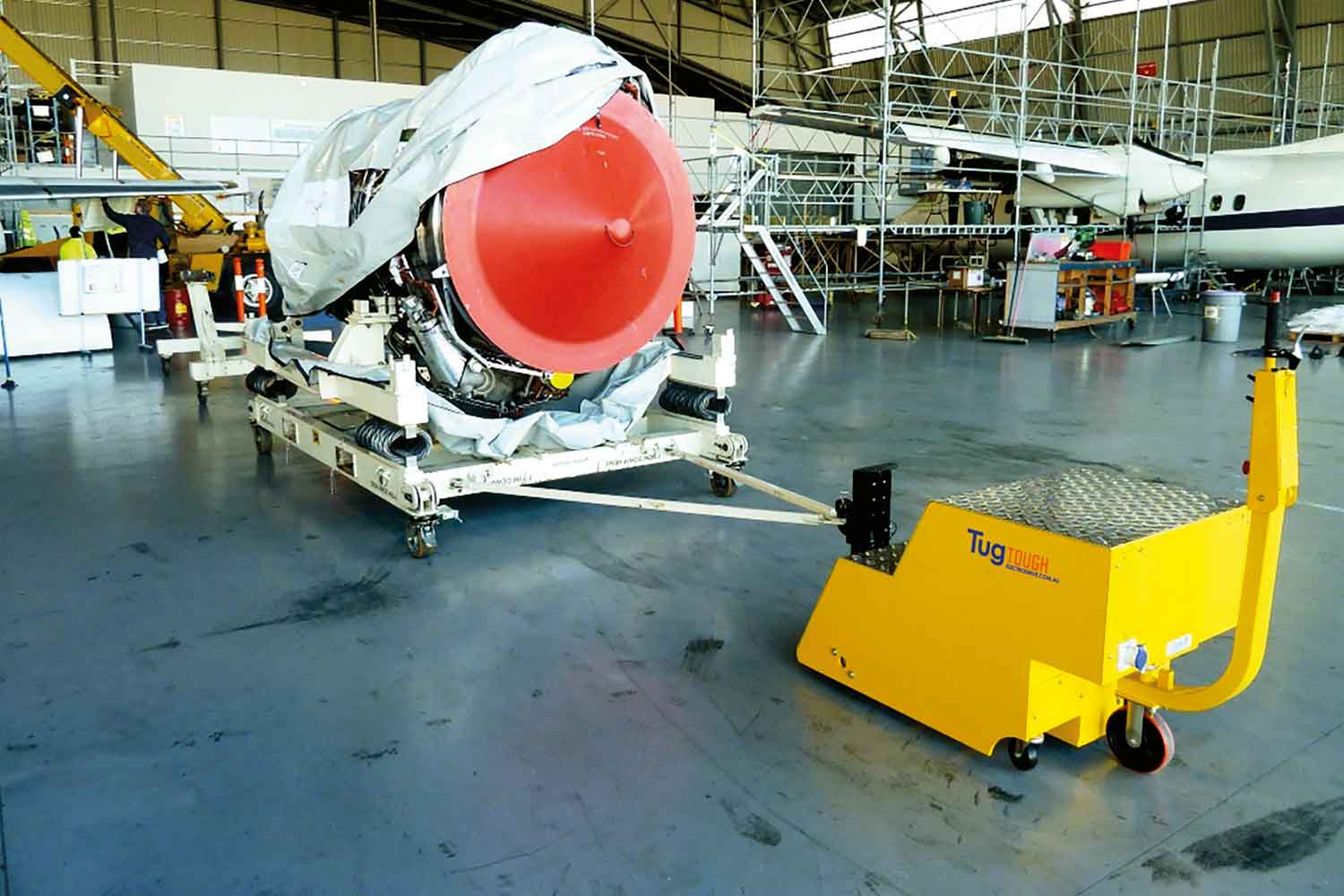

  • Suitable for airports: towing airplanes/aircraft in and out of hangars.



Features and specifications

Order code

Tug Tough 10T: TUGTOUGH10TNH

Tug Tough 20T: TUGTOUGH20TNH

Tow capacity

Tug Tough 10T: 10,000 kg

Tug Tough 20T: 20,000 kg

Max. speed

Up to 2.5 km per hour.

Speed mode

Three speed control with forward, reverse and emergency stop.

Usability

  • Heavy duty construction.

  • Battery operated and rechargeable.

  • Ergonomic design.

  • Simple to use.

  • Quiet, smooth operation.

  • Zero emissions.

Hitching

  • Tug Tough 10T: EDHT10TPIN (pin hitch)

  • Tug Tough 10T: EDHT10THOOK (hook hitch)

  • Tug Tough 20T: EDHT20THOOK (hook hitch)

A variety of hitches are available for easy attachment.
Check the hitching and accessories page for more information.

Country of origin

Designed and manufactured in Australia.

Safety features

  • Emergency stop button.

  • Emergency back-off button.

Warranty

  • Comprehensive 12-month warranty.

  • Six month warranty on battery and charger.

Service

Training and servicing programs are available.

Download our Preventative Maintenance Plans for more information.

Battery

  • Tug Tough 10T: Four 12V 60Ah MK-gel batteries with a 48V smart charger.

  • Tug Tough 20T: Four 12V 150Ah MK-gel batteries with a 48V smart charger.

Dimensions (L/W/H)

  • Tug Tough 10T: 1912/650/910 mm

  • Tug Tough 20T: 3245/1820/910 mm

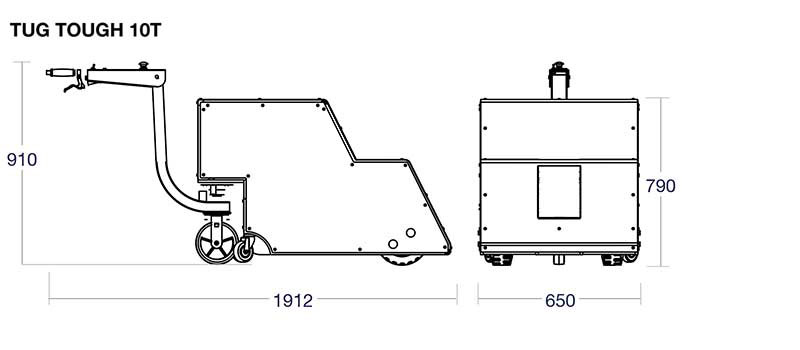

Diagrams of the Tug Tough (10T and 20T) with their dimensions
