Universal bin lifter

Battery powered bin lifter with a 250 kg load capacity

Universal Bin Lifter

Features at a glance

Lift and tilt icon

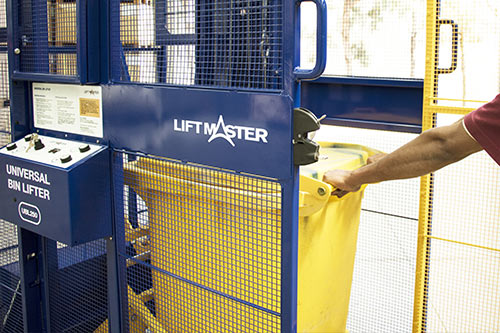

Lift and tilt

Highest tip point: 2900 mm

250 kg max load icon

Lifting capacity of 250 kg

100 lifts per day icon

Suitable for 100 lifts per day

Safety panels icon

Safety panels



Australian-made bin lifter built for safety

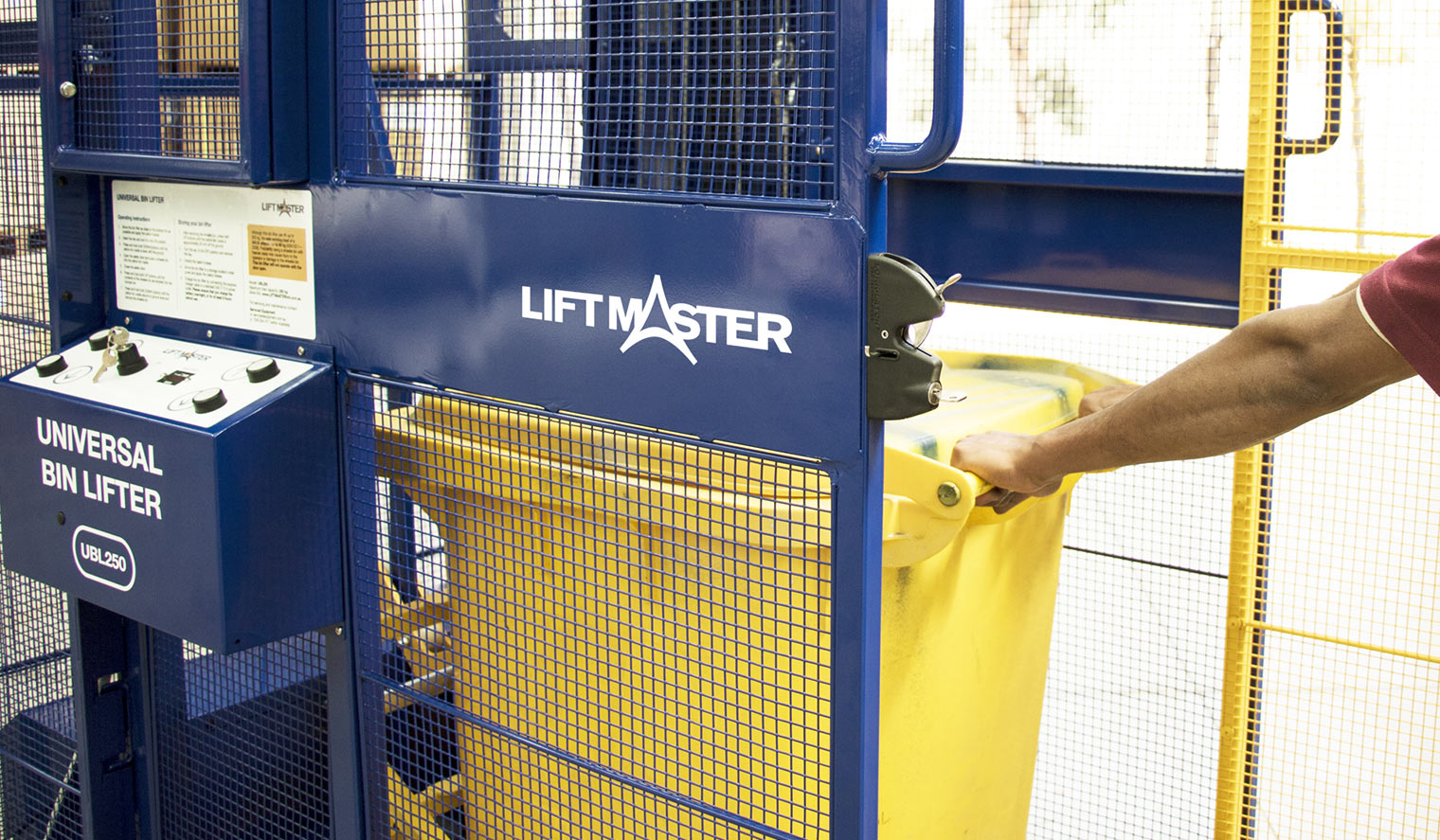

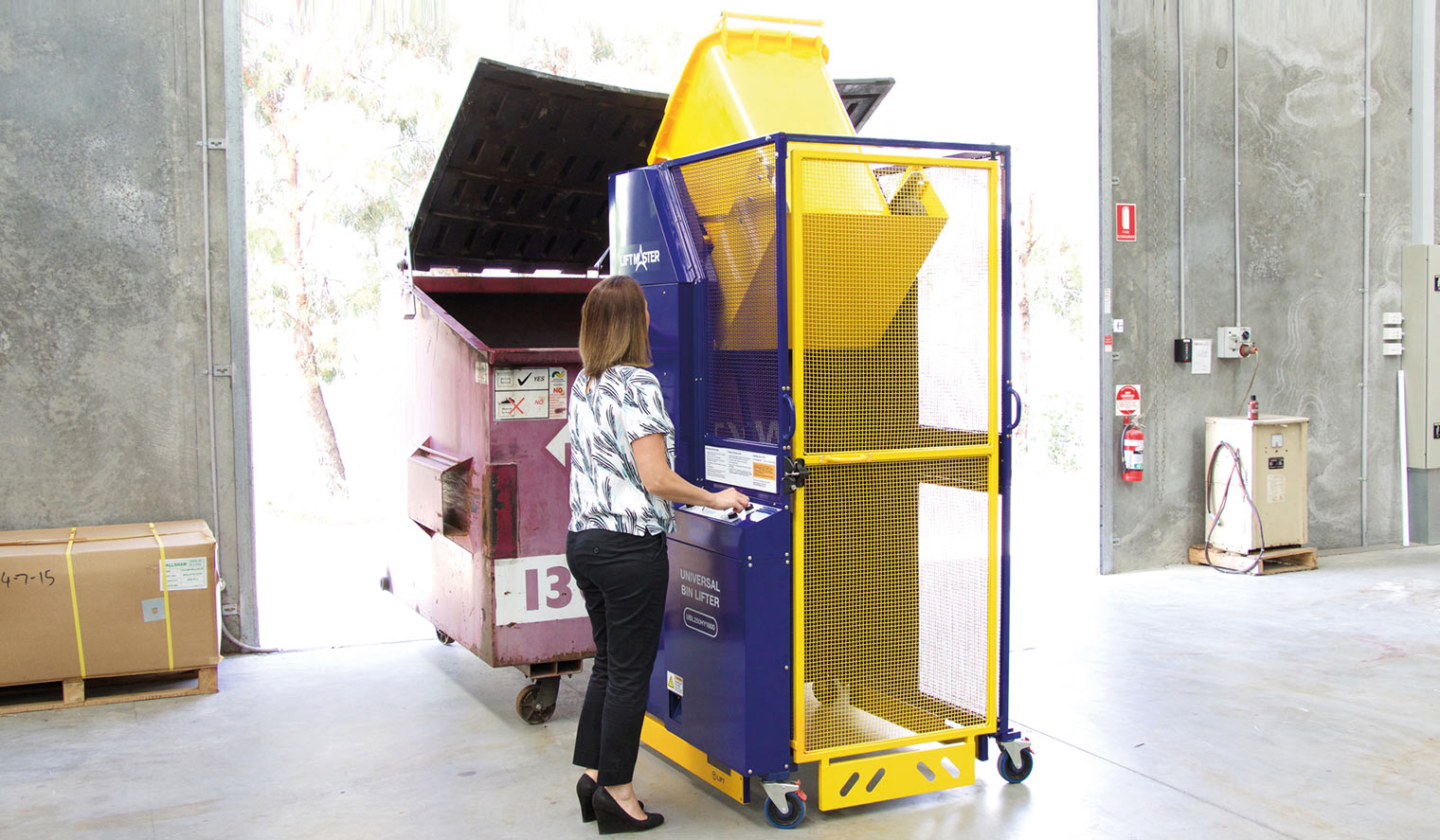

The Universal Bin Lifter is a push button unit with a complete safety cage and lockable door that aids in the lifting and emptying of wheelie bins into dumper bins.

When employee safety is paramount the Universal Bin Lifter is the model for you. Completely Australian Standards compliant, the safety cage and extra guarding adds extra protection for users.

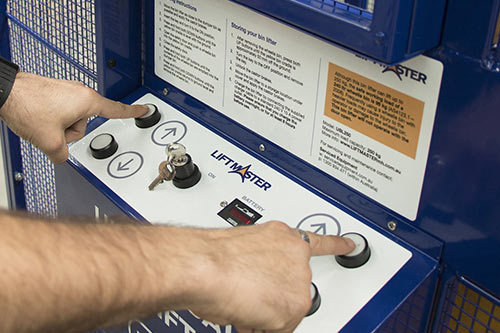

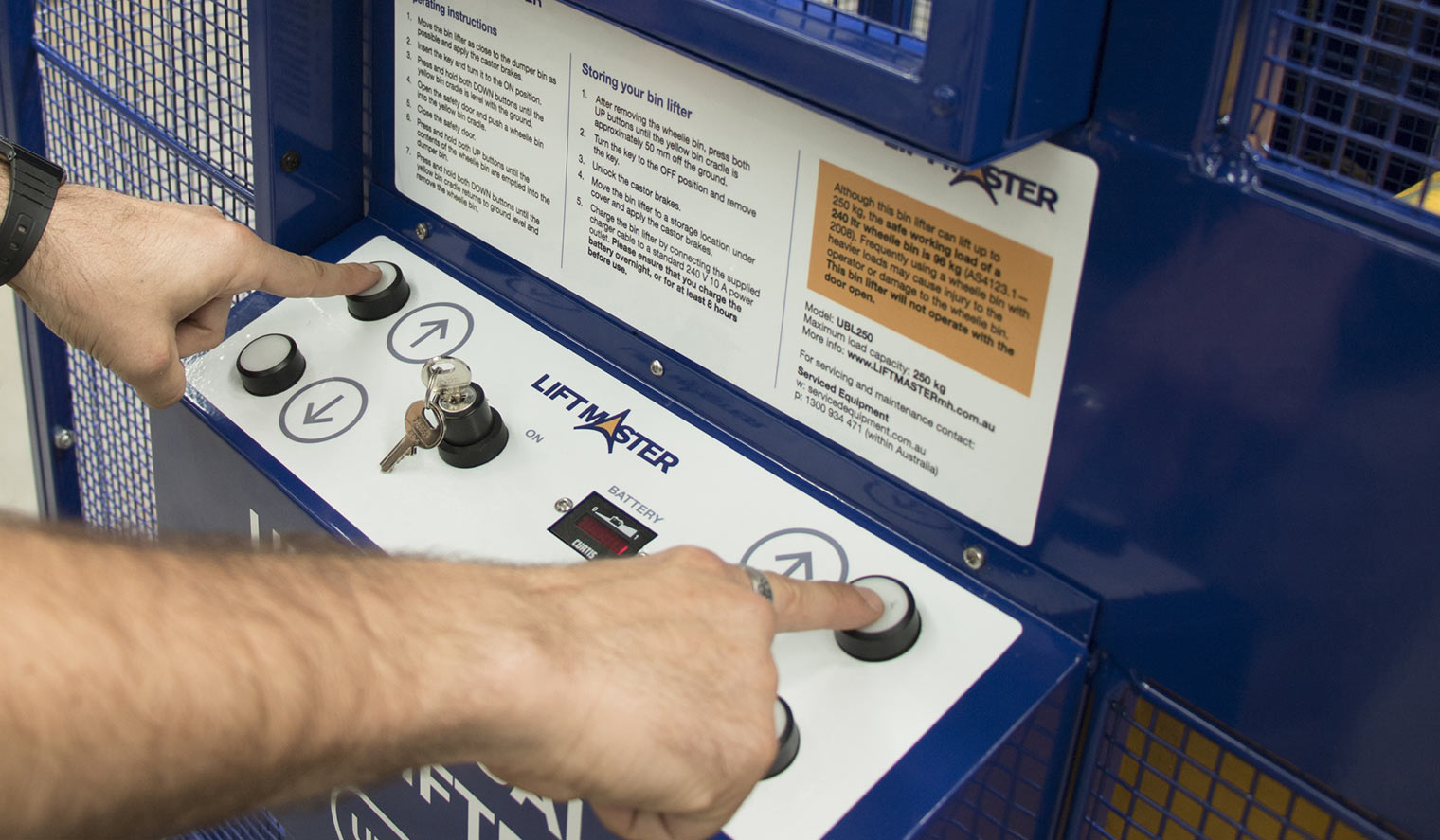

Suitable for heavy weight and regular lifts, the simple push-button operation eliminates all manual handling and associated risks.


Typical applications

Suitable for supermarkets, schools, construction sites, apartment blocks, waste management companies, event organisers.



Features and specifications

Order code

UBL250HYD1500 (for 1500 mm skip bins)

UBL250HYD1800 (for 1800 mm skip bins)

Lifting capacity

250 kg

Lifting mechanism

Lift-and-tilt

Recommended lifts (per day)

100 +

Bin compatibility

Wheelie bin: 80, 120, 140 and 240 litre

Skip bin: 1500 and 1800 mm

Operation

Method: Push-button hydraulic system.

Time: 35 seconds.

Battery

12V rechargeable battery and smart charger

10A main outlet

Highest tip point

2900 mm

Country of origin

Designed and manufactured in Australia.

Safety features

  • Safety cage and lockable door to eliminate hand and foot crush-points for operators and bystanders.

  • Braking castors for stability.

  • Sturdy stand-alone unit.

  • National Association of Testing Authorities (NATA) load tested and certified

Warranty

  • Comprehensive 12-month warranty.

Service

Training and servicing programs are available.

Download our Preventative Maintenance Plans for more information.

Dimensions (L/W/H)

1500/980/2200 mm




The bin lifter range

How the Niftylift works

Can we help?

Find out how a Universal Bin Lifter can help keep you and your staff safe in your workplace.
