Tug Evo—1T and 2T

Battery powered tug with a 1 or 2 tonne tow capacity

Features at a glance

One tonne (Evo 1T) or two tonne (Evo 2T) tow capacity

Auto latching hitch

Three speed motor with emergency stop



Electrodrive's Tug Evo towing a trolley
Electrodrive's Tug Evo towing a trolley

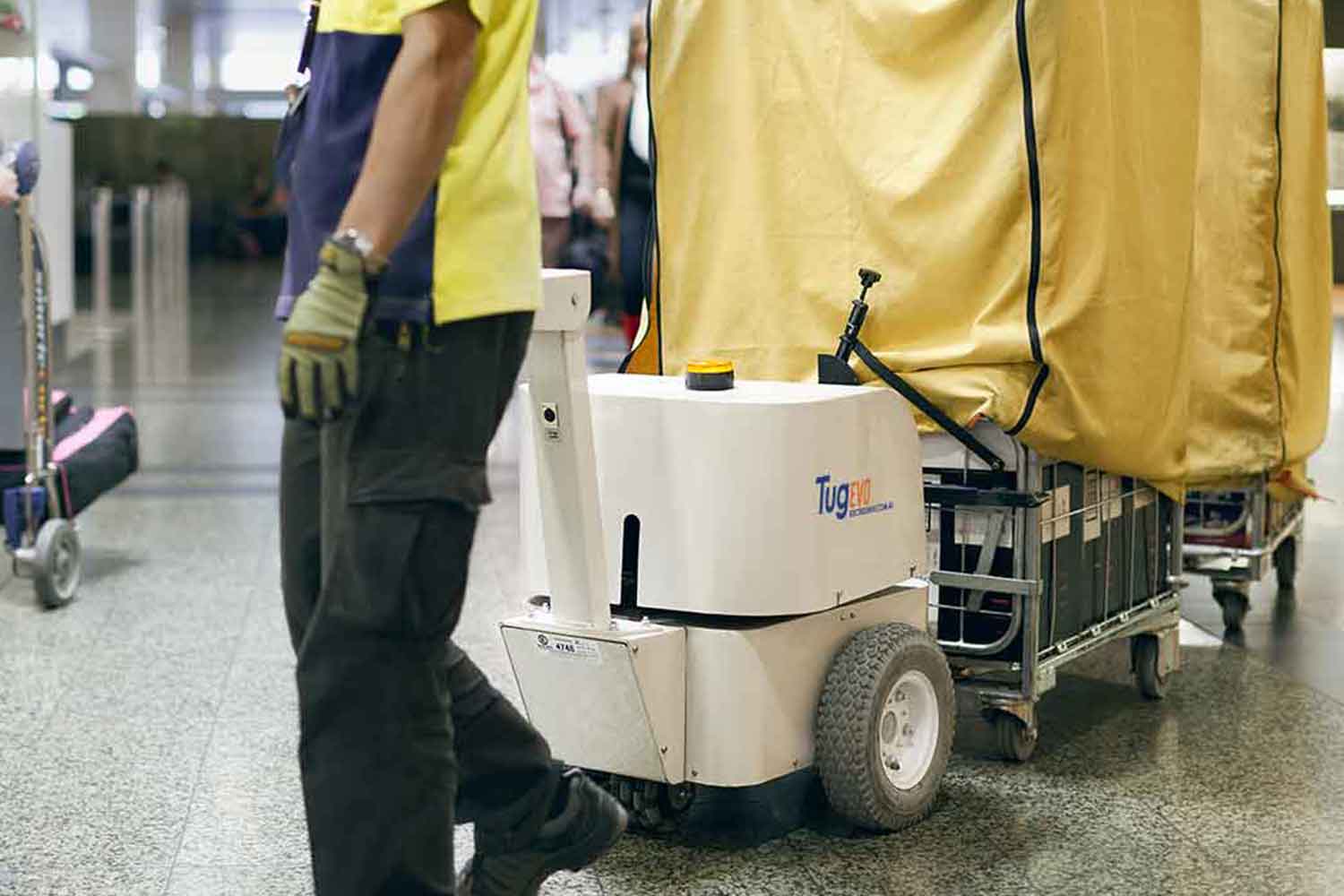

Electrodrive's Tug Evo towing a large trolley through an airport
Electrodrive's Tug Evo towing a large trolley through an airport

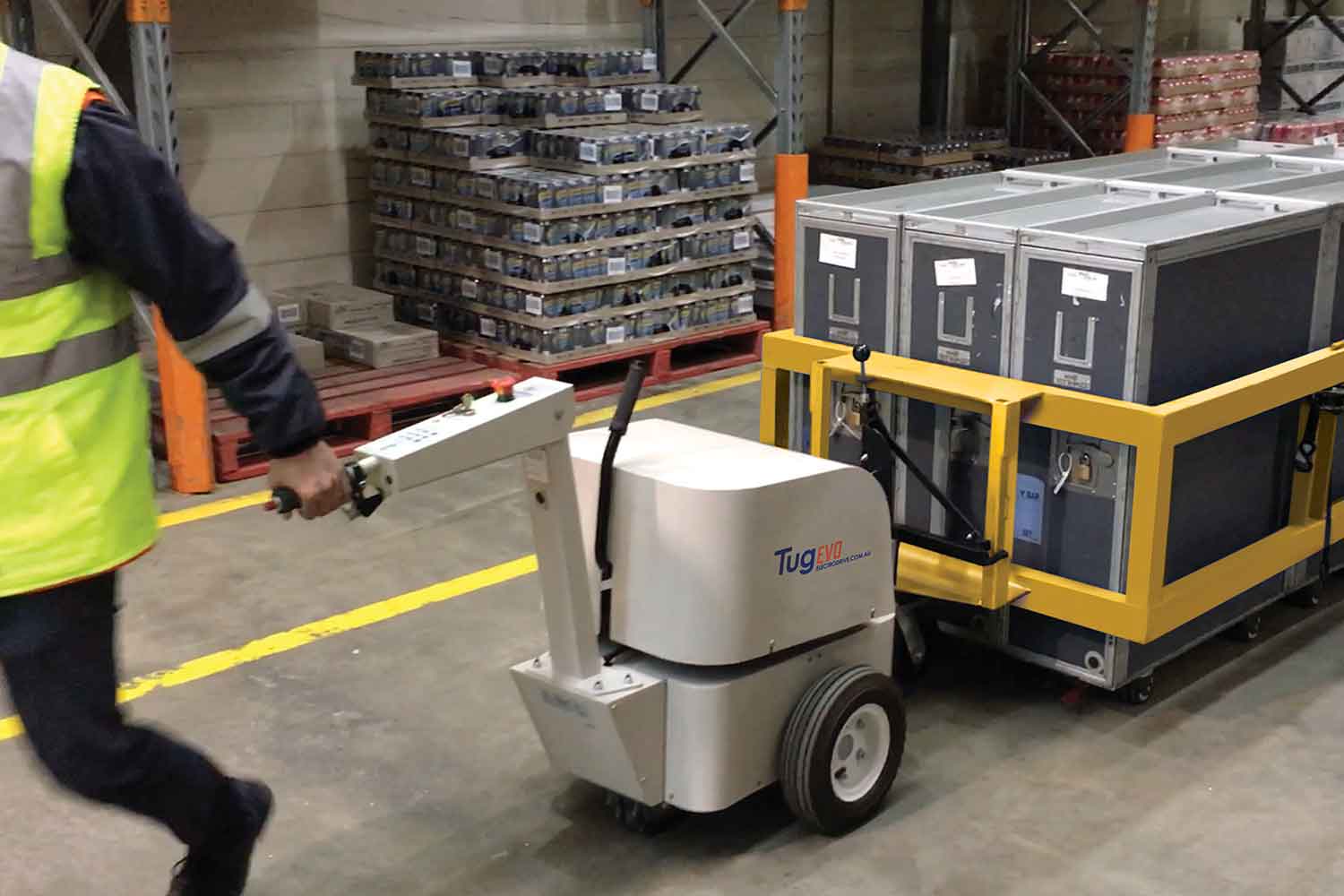

Electrodrive's Tug Evo moving an airline cart
Electrodrive's Tug Evo moving an airline cart

Australian-made electric tug

Electrodrive's powerful battery operated Tug Evo is available in one (1T) or two tonne (2T) towing capacities. Supplied with an auto-latching hitch for easy attachment to trolleys, it is ideal for industrial towing, as well as transporting medical carts around hospitals, moving heavy specialist equipment or moving heavy trolleys around factories or retail.

Ergonomically designed tug

Using the tiller handle to tow the tug, the operator is in front of the load, increasing visibility and reducing the risk of collisions.

Powered towing can eliminate push/pull injuries caused by manually moving heavy trolleys or repetitive movements. Read more about our ergonomically designed tugs.


Typical applications

The Tug Evo is suitable for airports, factories, warehouses, apartment buildings or large facilities. This powered tug is also suitable for transporting medical carts around hospitals or moving heavy specialist equipment.

Features and specifications

Order codes

  • TUGEVO1TNH (1 tonne, no hitch)

  • TUGEVO2TNH (2 tonne, no hitch)

  • EDHT1810-024 (Auto-latching hitch—standard)

Tow capacity

  • Tug Evo 1T: 1000 kg

  • Tug Evo 2T: 2000 kg

(On flat ground.)

Max. speed

Up to 5 km per hour.

Speed mode

Three speed control with forward, reverse and emergency stop.

Usability

  • Battery operated and rechargeable.

  • Ergonomic design.

  • Simple to use.

  • Quiet, smooth operation.

  • Zero emissions.

Hitching

  • Supplied with an auto-latching hitch.

  • Wide variety of hitches are available for easy attachment to trolleys.
    Check the hitching and accessories page for more information.

Country of origin

Designed and manufactured in Australia.

Safety features

  • Intuitive control with standard automatic safety brake, forward and reverse drive.

  • Emergency stop button.

  • Emergency back-off button.

Warranty

  • Comprehensive 12-month warranty.

  • Six month warranty on battery and charger.

Service

Training and servicing programs are available.

Download our Preventative Maintenance Plans for more information.

Battery

Two 12V 42Ah MK-gel batteries with 24V smart charger.

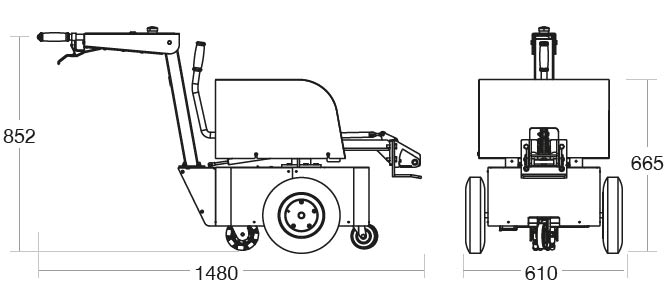

Dimensions (L/W/H)

1480/610/852 mm (handle down)

A diagram of the Tug Evo with its dimensions
