Liftmaster Ecolift bin lifter

Crank-handle operated bin lifter with a 50 kg load capacity

Liftmaster Ecolift bin lifter

Features at a glance

Tilt and lift icon

Lift and tilt

Highest tip point: 2800 mm

50 kg max load icon

Lifting capacity of 50 kg

6 lifts per day icon

Suitable for six lifts per person, per day.

Safety panels icon

Safety panels.



Australian-made bin lifter

The Liftmaster Ecolift bin lifter is a lift-and-tilt crank handle operated unit for lifting and tipping wheelie bins into skip bins.

Suitable for infrequently tipping wheelie bins up to 50 kg, the Ecolift eliminates all lifting from the process of emptying wheelie bins into skip bins.

The bin is lifted by simply manually rotating the crank handle, protecting the user from costly back injuries associated with lifting heavy loads above shoulder height.

Protruding wheels

Please note: Waste bins/wheelie bins need to have protruding wheels to suit the ECOLIFT50.

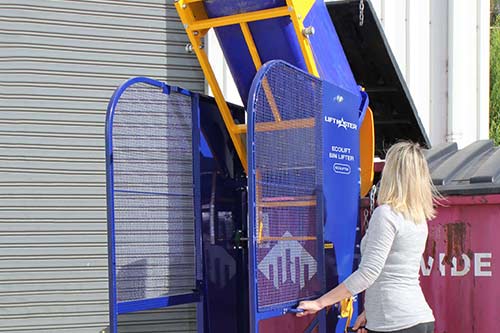

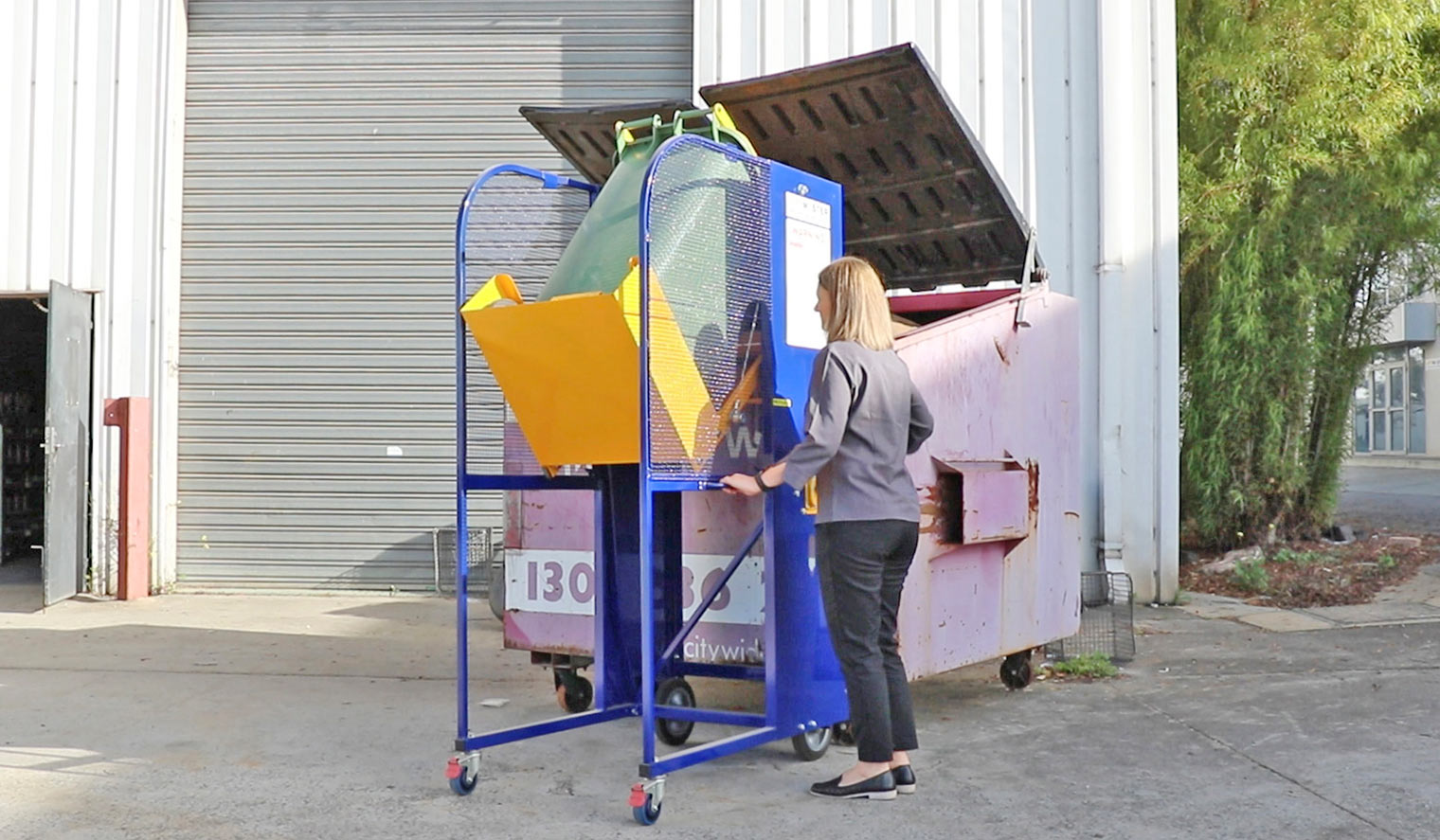

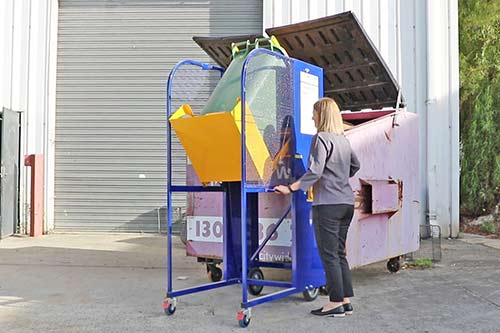

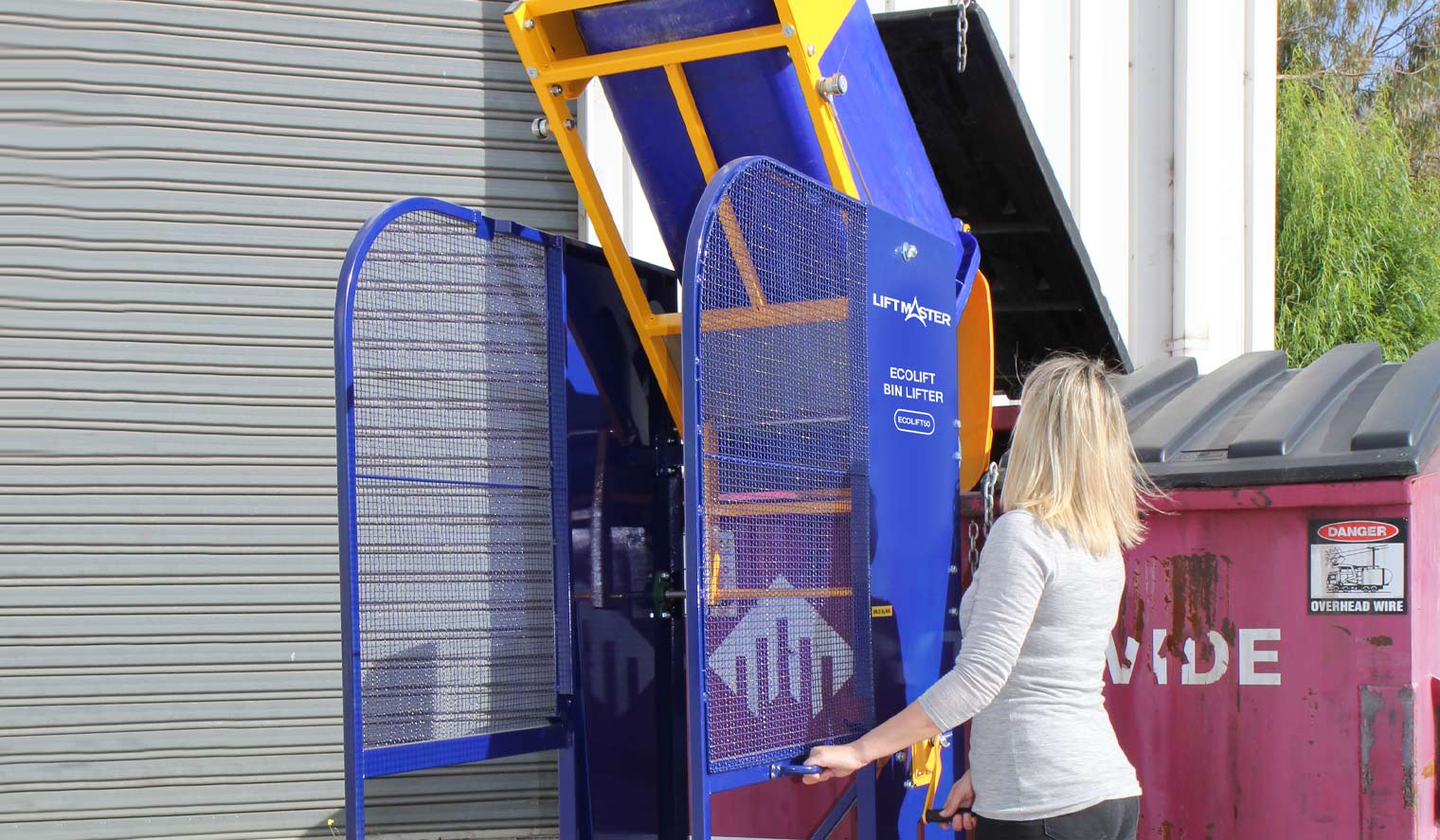

Liftmaster's Ecolift has a lift-and-tilt motion
The Ecolift has a lift-and-tilt motion
Liftmaster's Ecolift bin lifter has a lift-and-tilt motion
The Ecolift has a lift-and-tilt motion

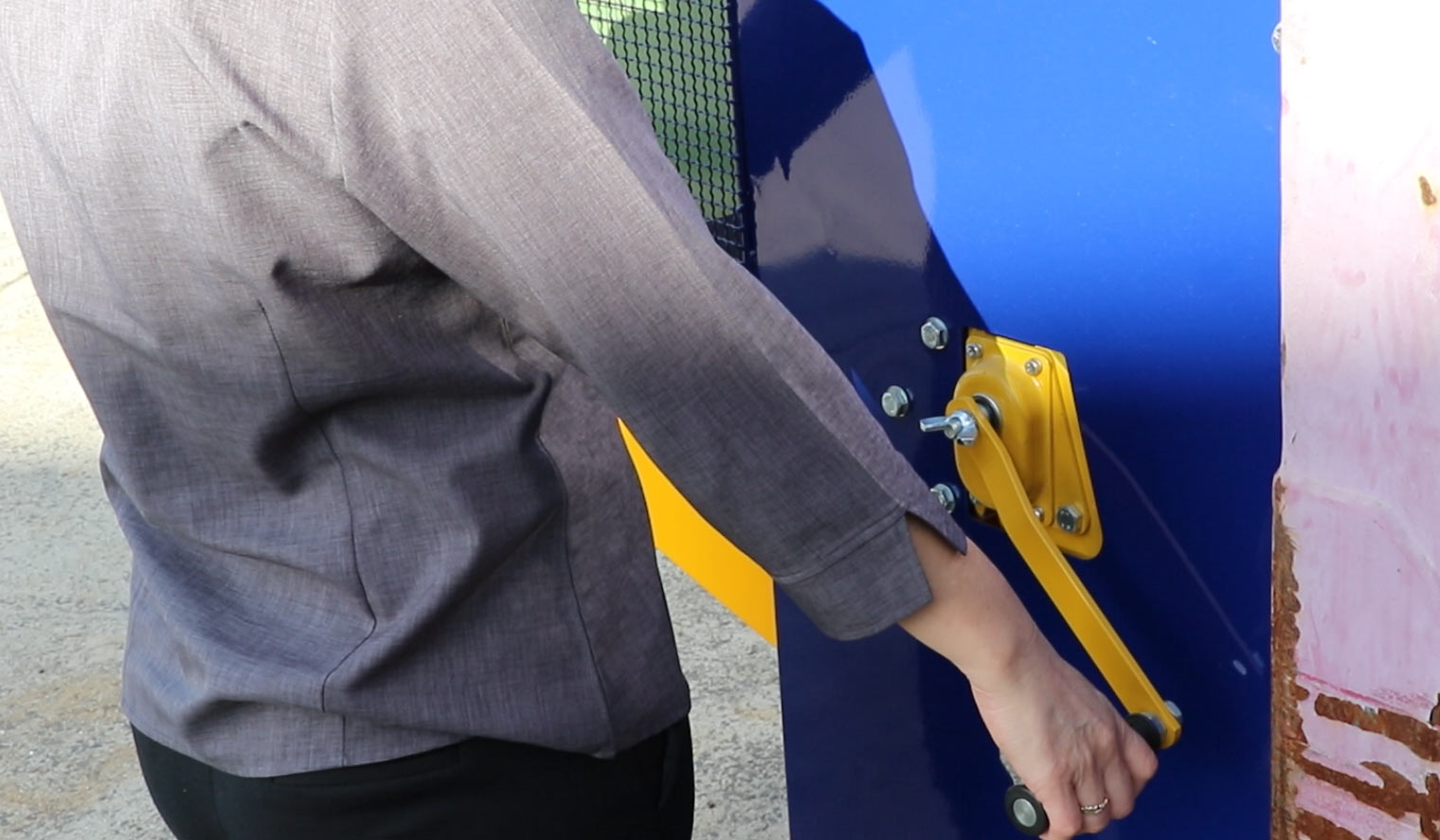

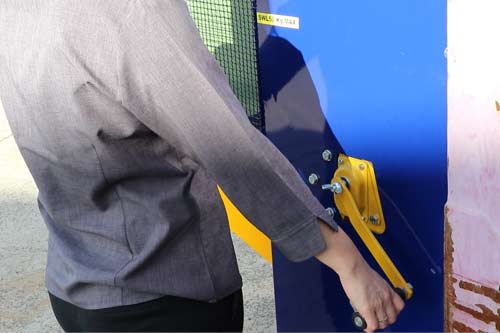

Liftmaster's Ecolift bin lifter crank handle
Ecolift bin lifter crank handle

Typical applications

Suitable for schools, local councils, factories, retail outlets and offices.



Features and specifications

Order code

ECOLIFT50

Lifting capacity

50 kg

Lifting mechanism

Lift-and-tilt

Recommended lifts (per person per day)

6

Bin compatibility

Wheelie bin: 80, 120, 140 and 240 litre
(Wheelie bins must have protruding wheels).

Skip bin: Up to 1500 mm

Operation

Method: Manual winding crank-handle.

Time: 45 seconds.

Fits through internal doorways

Yes

Highest tip point

2800 mm

Country of origin

Designed and manufactured in Australia.

Safety features

  • Safety cage panels to protect operators and bystanders.

  • The winding motion of the crank handle operation ensures gradual controlled bin lifting.

  • Braking castors for stability.

Cable length

3.2 m

Warranty

  • Comprehensive 12-month warranty.

Service

Training and servicing programs are available.

Download our Preventative Maintenance Plans for more information.

Dimensions (L/W/H)

1200/800/2000 mm




Liftmaster's bin lifter range

Liftmaster's bin lifter range

Can we help?

Find out how a Liftmaster Ecolift Bin Lifter can help keep you and your staff safe in your workplace.
